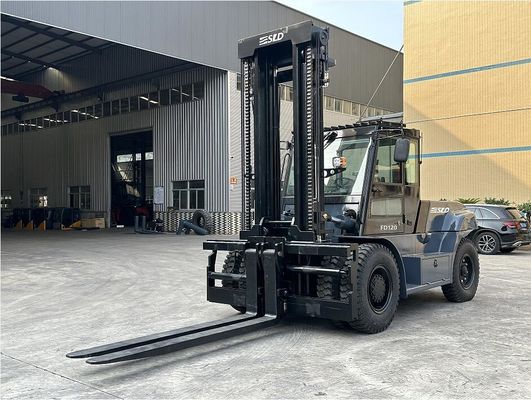

Product Overview: Our Heavy Load Forklift is designed to make handling heavy loads effortless. With front or rear wheel steering for superior maneuverability and a tire prong attachment for managing large tires, it's perfect for demanding environments like warehouses and construction sites.
Key Features:
Front/Rear Wheel Steering: Enhances agility in tight spaces.
Tire Prong Attachment: Specifically designed for handling heavy tires.
Hydraulic Transmission: Ensures smooth power delivery for heavy lifting.
Durable Construction: Built to withstand rigorous daily use.
Customizable Options: Adapt the forklift to your unique needs.
Technical Specifications:
Rated Load Capacity: Up to 15,000 kg
Fork Length: 1,800 mm
Mast Lifting Height: Up to 3,000 mm
Steering Options: Front or Rear Wheel
Engine Type: Yuchai/CUMMINS (options available)
Transmission Type: Hydraulic
Maximum Speed: Up to 25 km/h
| Parameters: |
Vehicle configuration |
|
FD150 |
| Performance |
Rated load |
|
15000 |
| |
Load center |
|
600 |
| |
Mast tilt angle (front/rear) |
º |
6/12 |
| |
Overall dimensions |
Length |
mm |
6635 |
| |
|
Width |
mm |
2230 |
| |
|
Height |
mm |
3050 |
| |
|
Mast lifting height |
mm |
3000 |
| |
Fork size (L*W*H) |
mm |
1800X200X90 |
| |
Min. turning radius |
mm |
4800 |
| |
Max. travel speed (with load) |
Km/h |
22 |
| |
Lifting speed (with load) |
mm/s |
220 |
| |
Gradeability (with load) |
% |
20 |
| |
Weight |
Kg |
18000 |
| Tyre |
Front |
|
4X12.00-20/20PR |
| |
Rear |
|
2X12.00-20/18PR |
| |
Wheel tread |
Front |
mm |
1740 |
| |
|
Rear |
mm |
1900 |
| |
Wheelbase |
mm |
3300 |
| |
Min. ground clearance |
mm |
270 |
| Engine |
Model |
|
YC6J175-T302 |
| |
Rated power |
KW |
129 |
| |
Max. torque |
N.m |
710 |
|
